SW100-H
Powered by a durable diesel engine, it supports continuous dry running to eliminate unexpected downtime risks. Integrated with a high-performance vacuum pump, it achieves a suction height exceeding 9 meters, expanding operational coverage.
Our high vacuum system has patent certification. High-performance Oil-circulated Vacuum System with a maximum vacuum of -0.099 MPa and 100 m³/h exhaust capacity. Built-in cooling system ensures stable operation without oil overheating. The air-water separator prevents water from entering the oil tank, maintaining efficiency.
-
Portable Emergency Drainage Device
-
Suction Height Exceeding 9 Meters
-
Durable Diesel Engine
-
Engine Speed up to 2900 rpm
-
Water Cooled
-
Trailer Mounted
High Vacuum Self-priming Drainage Trailer Pump
Performance
Machine Performance
Type : Trailor Mounted, Stationery, Closed, Open Type
Max Flow : 200 m³/h
Max Head : 150 m
Suction Height : 9 m
Diesel Engine Parameters
Brand Recommended : Cummins, Weichai, Baudouin, Deutz
Power : >80 kW
Speed : 2000-2900 rpm
Cooling Method : Water Cooled
Pump Parameters
Inlet : 4 inch
Outlet : 4 inch
Speed : 2000 – 2900 rpm
Pump Case : Cast Iron
Impeller : Cast Iron / Stainless Steel
Shaft : Carbon Steel / Stainless Steel
Max Particle Size : 45 mm
Accessories Available
Suction Pipe, Hose, Quick Connections, Strainers, Clamps
Performance Curve

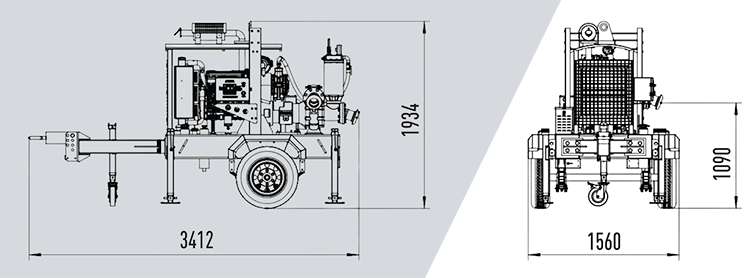

*Dimensions may vary depending on engine model and type.
