SW250-H
An intelligent control system effectively protects the engine, offering remote monitoring capabilities, allowing you to check and remotely start or stop the engine anytime, ensuring safe and reliable operation. High head to cope with more drainage situations.
Our high vacuum system has patent certification. High-performance Oil-circulated Vacuum System with a maximum vacuum of -0.099 MPa and 100 m³/h exhaust capacity. Built-in cooling system ensures stable operation without oil overheating. The air-water separator prevents water from entering the oil tank, maintaining efficiency.
-
Portable Emergency Drainage Device
-
Various Accessories Available
-
Single-person Transportation and Operation
-
Diesel Engine Speed up to 2200 rpm
-
Water or Air Cooled
-
Trailer Mounted
High Vacuum Self-priming Drainage Trailer Pump
Performance
Machine Performance
Type : Trailor Mounted, Stationery, Closed, Open Type
Max Flow : 1000 m³/h
Max Head : 190 m
Suction Height : >8.5 m
Diesel Engine Parameters
Brand Recommended : Cummins, Weichai, Baudouin, Deutz
Power : >520 kW
Speed : 2200 rpm
Cooling Method : Water Cooled or Air Cooled
Pump Parameters
Inlet : 10 inch
Outlet : 10 inch
Speed : 2200 rpm
Pump Case : Cast Iron
Impeller : Cast Iron/Stainless Steel
Shaft : Carbon Steel/Stainless Steel
Max Particle Size : 76 mm
Accessories Available
Suction Pipe, Hose, Quick Connections, Strainers, Clamps
Performance Curve

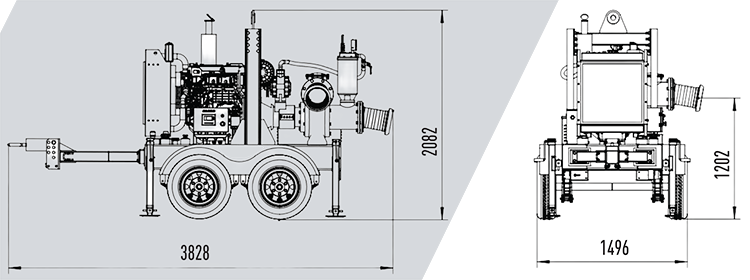

*Dimensions may vary depending on engine model and type.
