SW300-M
This 12-inch diesel water pump achieves a perfect balance between high flow and lift, making it suitable for various working conditions.Whether for municipal drainage, mining water removal, or construction site dewatering, this water pump is the perfect choice for efficient work!
Our high vacuum system has patent certification. High-performance Oil-circulated Vacuum System with a maximum vacuum of -0.099 MPa and 100 m³/h exhaust capacity. Built-in cooling system ensures stable operation without oil overheating. The air-water separator prevents water from entering the oil tank, maintaining efficiency.
-
Portable Emergency Drainage Device
-
Various Accessories Available
-
Single-person Transportation and Operation
-
Diesel Engine Speed up to 1800 rpm
-
Water or Air Cooled
-
Trailer Mounted
High Vacuum Self-priming Drainage Trailer Pump
Performance
Machine Performance
Type : Trailor Mounted, Stationery, Closed, Open Type
Max Flow : 1300 m³/h
Max Head : 25 m
Suction Height : >8.5 m
Diesel Engine Parameters
Brand Recommended : Cummins, Weichai, Baudouin, Deutz
Power : >60 kW
Speed : 1500-1800 rpm
Cooling Method : Water Cooled
Pump Parameters
Inlet : 12 inch
Outlet : 12 inch
Speed : 1500 rpm
Pump Case : Cast Iron
Impeller : Cast Iron/Stainless Steel
Shaft : Carbon Steel/Stainless Steel
Max Particle Size : 85 mm
Accessories Available
Suction Pipe, Hose, Quick Connections, Strainers, Clamps
Performance Curve

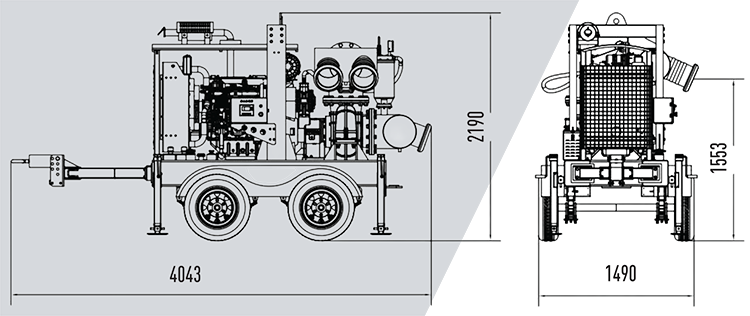

*Dimensions may vary depending on engine model and type.
